Description

Air cooled condensing unit been vertically installed outside can be equipped with single or dual compressor(s) and a vertical discharge air cooled condenser that meets the needs of a demanding commercial and industrial refrigeration market such as large walk-in cold rooms, freezer rooms, blast freezers, warehouse applications. The vertically air cooled condensing unit is custom designed to be flexible in its design and construction to allow it to respond to the requirements of refrigeration contractors, consulting engineers and facility owners or operators. ONLYKEM brand vertical outdoor air cooled condensing unit is often preassembled, factory installed refrigeration system featuring an integrated microcomputer-based electronic control board. Our vertical outdoor condensing unit can efficiently perform at varying ambient conditions even the highest summer ambient temperatures which is features high efficiency, integrated control, large refrigeration capacity, energy saving and easy installation.

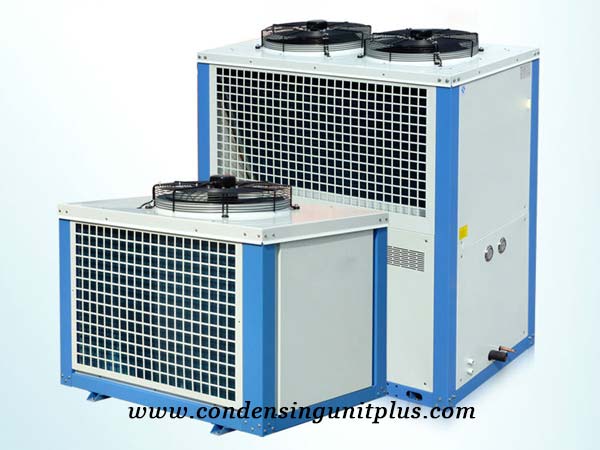

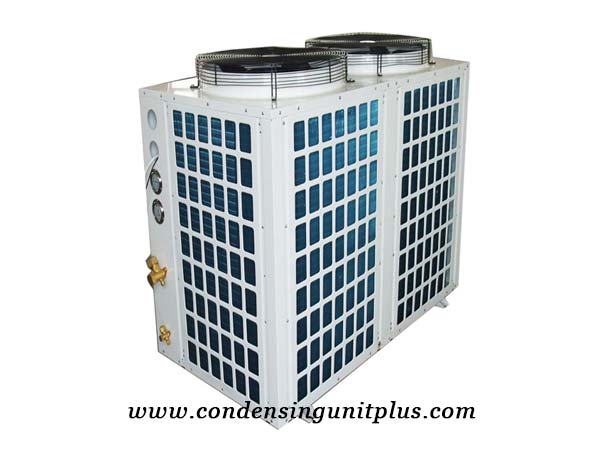

High Quality Vertical Outdoor Air Cooled Condensing Unit Production

Vertical Air Cooled Condensing Unit Specifications

Condensing Unit	Compressor		Cooling Capacity	Condenser				Connection		Dimension
Model	Model	Power (KW)	Evap Temp -10°C	Fan Qty	Diameter (mm)	Air Flow (m³/h)	Fan Power (W)	Suction (mm)	Liquid (mm)	(LxWxH) (mm)
OKM02U	ZB15KQE	1.55	4320	1	Φ400	3490×1	200×1	16	10	615x600x700
OKM03U	ZB21KQE	2.22	6400	1	Φ400	3490×1	200×1	16	10	615x600x700
OKM04U	ZB29KQE	2.95	8690	1	Φ400	3490×1	200×1	16	10	615x600x700
OKM05U	ZB38KQE	3.76	10860	1	Φ500	6660×1	380×1	19	12	910x800x750
OKM06U	ZB45KQE	4.28	12750	1	Φ500	6660×1	380×1	16	10	910x800x750
OKM07U	ZB48KQE	4.63	14060	2	Φ450	4900×2	250×2	22	16	1210x810x900
OKM08U	ZB58KQE	5.75	17000	2	Φ450	4900×2	250×2	22	16	1210x810x900
OKM09U	ZB66KQE	6.4	19010	2	Φ500	6660×2	380×2	28	19	1410x970x900
OKM10U	ZB76KQE	7.5	22600	2	Φ500	6660×2	380×2	28	19	1410x970x900
OKM13U	ZB95KQE	9.59	27700	2	Φ550	8500×2	600×2	35	19	1410x970x1000
OKM15U	ZB114KQE	11.4	33100	2	Φ550	8500×2	600×2	35	19	1410x970x1000
Reamrk	All data are based on condensing temperature 40°C, evaporating temperature -5°C. Compressor and accessory brand depends on customer’s requirement. Compressor refrigerant: R404a Standard power supply: 380V-420V/3 Phase/50Hz
OKM06V	4EES-6Y	4.9	12210	1	Φ400	3490×1	200×1	22	10	760x820x1290
OKM07V	4DES-7Y	5.85	14730	2	Φ400	3490×2	200×2	25	16	1075x680x1490
OKM09V	4CES-9Y	7.14	17800	2	Φ400	3490×2	200×2	25	16	1075x680x1490
OKM10V	4VES-10Y	7.15	18600	2	Φ500	6600×2	380×2	28	19	1275x800x1590
OKM15V	4PES-15Y	9.82	25610	2	Φ550	8500×2	600×2	35	22	1500x900x1735
OKM20V	4NES-20Y	11.6	30600	3	Φ550	8500×3	600×2	40	22	2100x960x1820
OKM25V	4HE-25Y	15.5	40640	3	Φ550	8500×3	600×3	40	22	2100x960x1820
OKM30V	4GE-30Y	17.9	46750	3	Φ550	8500×3	600×3	50	22	2150x1100x2020
OKM35V	4FE-35Y	22.4	56550	3	Φ550	8500×3	600×3	50	22	2150x1100x2020
OKM40V	6GE-40Y	26.7	68100	4	Φ550	8500×4	600×4	50	22	2670x1140x2020
Remarks	All data are based on condensing temperature 40°C, evaporating temperature -10°C. Compressor and accessory brand depends on customer’s requirement. Compressor refrigerant: R404a Standard power supply: 380V-420V/3 Phase/50Hz
OKL06V	4CES-6Y	5.22	9030	1	Φ400	3490×1	200×1	22	10	760x820x1290
OKL07V	4VES-7Y	5.13	9070	2	Φ400	3490×2	200×2	25	16	1075x680x1490
OKL09V	4TES-9Y	6.33	11230	2	Φ400	3490×2	200×2	25	16	1075x680x1490
OKL12V	4PES-12Y	6.9	12480	2	Φ500	6600×2	380×2	28	16	1275x800x1590
OKL15V	4JE-15Y	9.84	18040	2	Φ550	8500×2	600×2	35	19	1500x900x1735
OKL18V	4HE-18Y	11.7	21400	2	Φ550	8500×2	600×2	35	19	1500x900x1735
OKL23V	4GE-23Y	13.9	25120	3	Φ550	8500×3	600×3	40	22	2100x960x1820
OKL25V	6JE-25Y	14.5	26870	3	Φ550	8500×3	600×3	40	22	2100x960x1820
OKL28V	6HE-28Y	17.3	31480	3	Φ550	8500×3	600×3	40	22	2100x960x1820
OKL34V	6GE-34Y	21.1	37700	3	Φ550	8500×3	600×3	50	22	2150x1100x2020
OKL44V	6FE-44Y	25.6	44960	4	Φ550	8500×4	600×4	50	22	2670x1140x2020
Remarks	All data are based on condensing temperature 40°C, evaporating temperature -25°C. Compressor and accessory brand depends on customer’s requirement. Compressor refrigerant: R404a Standard power supply: 380V-420V/3 Phase/50Hz

Vertical Refrigeration Condensing Unit Configurations

Compressor, condenser, fan, liquid receiver, HP/LP controller
HP/LP gauge, dry filter, solenoid valve, sight glass.
Check valve, junction box, etc.

Vertical Air Cooled Condensing Unit Features

Integrated modular assembly, pre-equipped refrigeration components in factory.
Famous compressor for your demands
Large refrigeration capacity with optimized models
Optimized system performance
Integrated control
High efficiency
Easy to install and maintain
Cost and energy saving
Long service life

Vertical Air Cooled Condensing Unit Applications

OnlyKem brand vertical outdoor air cooled condensing unit is widely used in commercial and industrial refrigeration market such as large walk-in cold rooms, freezer rooms, blast freezers, warehouse applications.
