- High efficient heat exchanging coiled pipes
- External rotor motor realizes bilateral air blowing, soft supply and low noise
- Fit in different compressor
- Custom pitch of fins can be adjusted to meet your demands
- Different alternative condensing fans available.
- Compact structure
- Longer serve life
- Easy to install and maintain

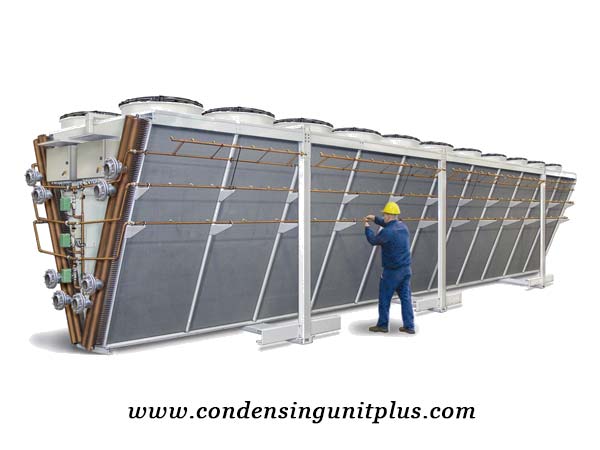

FNV Series ACC Air Cooled Condenser
Description
ACC Air Cooled Condenser is a kind of cooling devices by utilizing air which connected with Freon refrigeration equipments. ONLYKEM brand FNH series air cooled condenser is designed with a fully enclosed, semi-hermetic compressor supporting the use of the condenser. Our FNH series air cooled condense is widely used in cold storage room project, refrigeration industry and central air conditioning mainframe equipment, etc.

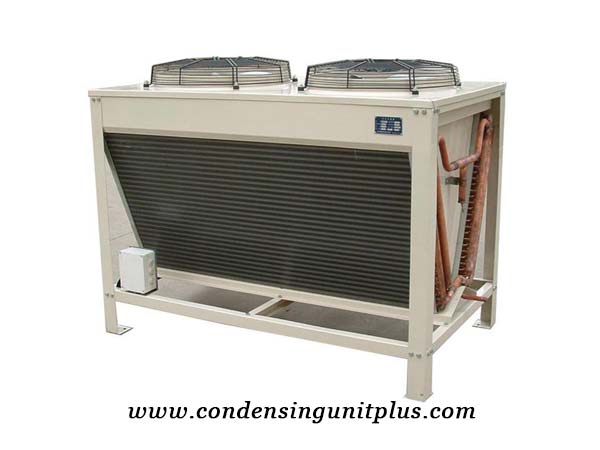

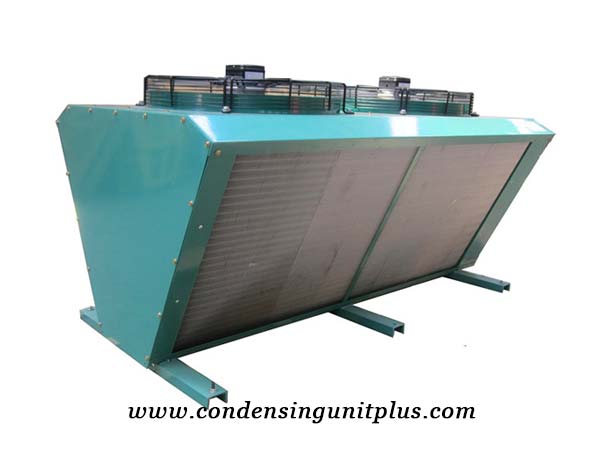

High Performance FNV Series ACC Air Cooled Condenser for Cold Room
FNV Series ACC Air Cooled Condenser Specifications
| Model | Nominal Capacity (Kw) | Fin Surface (m2) | Fan Data （380V） | Connection | Shape Size (mm) | Installation Size (mm) | |||
|---|---|---|---|---|---|---|---|---|---|
| Power (W) | Air Flow (m³/h) | Diameter (Фmm) | Inlet (Фmm) | Outlet (Фmm) | L*W*H | L*W | |||
| FNV-130 | 42.9 | 130 | 2*380 | 13000 | 500 | 30 | 19 | 1350 *850*950 | 1340 *650 |
| FNV-165 | 54.5 | 165 | 2*600 | 13000 | 500 | 30 | 19 | 1550 *850*950 | 1690 *650 |
| FNV-200 | 66 | 200 | 2*780 | 17000 | 550 | 30 | 22 | 1900 *1050*1150 | 1690 *860 |
| FNV-220 | 72.6 | 220 | 2*780 | 25000 | 600 | 30 | 22 | 1900* 1050*1150 | 1840 *860 |
| FNV-270 | 89.1 | 270 | 2*800 | 25000 | 600 | 30 | 22 | 2050*1050*1150 | 1690 *860 |
| FNV-300 | 99.9 | 300 | 3*780 | 28000 | 630 | 38 | 25 | 1900 *1050*1150 | 2440 *860 |
| FNV-350 | 115.5 | 350 | 3*800 | 37500 | 600 | 38 | 25 | 2650 *1050*1150 | 2140 *860 |
| FNV-400 | 132 | 400 | 3*800 | 42000 | 630 | 45 | 30 | 2350 *1050*1150 | 2440 *860 |
| FNV-460 | 151.8 | 460 | 4*780 | 50000 | 600 | 45 | 30 | 3070 *1050*1150 | 2840 *860 |
FNV Series ACC Air Cooled Condenser Features
- High efficient heat exchanging coiled pipes
- External rotor motor realizes bilateral air blowing, soft supply and low noise
- Fit in different compressor
- Custom pitch of fins can be adjusted to meet your demands
- Different alternative condensing fans available.
- Compact structure
- Longer serve life
- Easy to install and maintain
About ONLYKEM
Onlykem Technology Co., Ltd had been dedicated in manufacturing and supplying high quality cold room and refrigeration unit solutions to worldwide customers for over 10 years. We have over 20 professional cold room experts and 8,000 square meters factory. Our innovative, high quality products and solutions include cold room, freezer room, condensing unit, air cooled condensers, unit cooler, cold room door and PU panel, etc. We had provided many types of effective and states of the cold room and key parts to over 36 countries.
ONLYKEM is not only manufacturing best quality cold rooms and refrigeration units but also providing professional custom design, fabrication and installation service. OEM, ODM are also available. If you have any questions or inquiries, please fill and submit the following form, we will reply as soon as possible.
